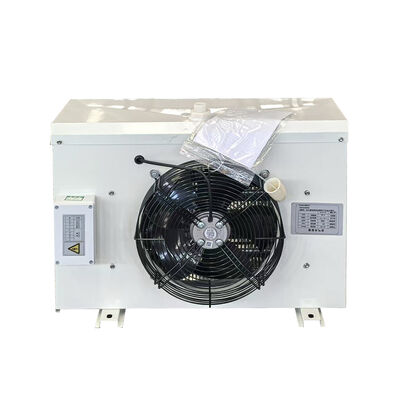

Compact Low-noise 1.225kW 7㎡ DD7 Air Cooler

Name: Compact Low-noise 1.225kW 7㎡ DD7 Air Cooler
Brand: Shenzhen Ruifujie Technology Co., Ltd.
SKU: DD-1.2/7
Price: 5,000.00 USD
Availability: InStock

Marchio:	Ruifujie
Numero di modello:	DD-1.2/7
Moq:	1
prezzo:	Discussed
Tempo di consegna:	1 mese
Condizioni di pagamento:	T/T, Unione Occidentale

Informazioni dettagliate

Descrizione del prodotto

Informazioni dettagliate

Luogo di origine:

Cina

Modello:

DD-1.2/7

Capacità di refrigerazione nominale:

1.225KW (1225W)

Area abbinata:

7㎡

Tensione nominale:

380/220V

Applicazione:

Cella frigorifera, congelatore

MOQ:

1 set

Garanzia:

1 anno

Imballaggio:

Imballaggio in legno

Imballaggi particolari:

cassa di legno

Capacità di alimentazione:

100 pz

Descrizione del prodotto

Compact Low-noise 1.225kW 7㎡ DD7 Air Cooler

Product Advantages

Precise Mini Cooling Performance: 1.225kW nominal refrigeration capacity, perfectly matched for 7㎡ tiny cold rooms, maintaining stable low temperature for small-volume fresh preservation.
Balanced Gentle Airflow Delivery: 1563m³/H moderate airflow with 8m air throw range, realizing even cooling without over-drying stored goods in compact cold space.
Single-Fan Energy-saving Structure: Single 300mm diameter fan supports 380/220V dual voltage, low power consumption of only 75W for long-term cost-effective operation.
Compact Optimized Pipeline Layout: 1.4L small tube volume with φ12/φ19mm inlet-outlet tubing, guarantee smooth refrigerant circulation for stable heat exchange efficiency.
Dual Independent Defrost Design: 1200W fin defrost power plus 600W drain pan defrost power, quickly eliminate thin frost under high-humidity mini-cold-room environment.

Technical Specifications

Parameter	Specification
Model	DD-1.2/7 (DD7)
Nominal Refrigeration Capacity	1.225kW(1225W)
Applicable Cold Room Area	7㎡
Tube Volume	1.4L
Refrigerant Inlet/Outlet Diameter	φ12/φ19mm
Fan Quantity	1 unit
Fan Diameter	300mm
Working Voltage	380/220V
Total Fan Power	75W
Air Volume	1563m³/H
Air Throw Range	8m
Fin Defrost Power	1200W
Drain Pan Defrost Power	600W

Company Profile

Shenzhen Ruifujie Technology Co., Ltd. has over 20 years of professional experience in the refrigeration industry. We independently develop scroll, piston, rotor, semi-hermetic and screw compressors, with rich experience in cold storage, freezing equipment and ice machines. We offer comprehensive OEM/ODM refrigeration services, export refrigeration products globally, and are praised for reliable compressors, professional services and competitive pricing.

Packaging and Shipping

Supply Ability	1000000 pieces/year, MOQ is usually one piece
Shipping Time	Sample order in stock within 3 days, Bulk order generally 10-15 working days after receiving deposit
Shipping Method	Support by sea, by air, by express (DHL, FedEx, UPS...)
Payment Terms	TT/Western Union 30% Advance Payment, 70% Final Payment
Shipping Port	Ningbo Port, Shanghai Port, Shenzhen Port

Frequently Asked Questions

Q: When can I get the price?

A: Usually we quote within 8 hours after we get your inquiry.

Q: What are the main products?

A: 1. Scroll: CPL, Hitachi, Daikin, Sanyo
2. Piston: Maneurop MT, NTZ, MTZ series, GMCC
3. Rotary compressor: Toshiba
4. Semi-hermetic: CPL, Carrier
5. Screw compressor: Tecumseh, Hanbell, Refcomp

Q: What is your delivery time?

A: 1. For Sample order in stock, we aim to ship the compressor within 3 days.
2. For any Bulk order, generally we ship compressor in 10-15 working days after receiving deposit.

Q: How about the packaging?

A: Ship by sea with refrigerat oil in wooden case. Ship by air without refrigerat oil in wooden case.

Q: Can we use our own logo?

A: Yes, we can print your private logo according to your request.
