Industrial-grade DL185 Evaporator for Large Commercial Cold Storage

Name: Industrial-grade DL185 Evaporator for Large Commercial Cold Storage
Brand: Shenzhen Ruifujie Technology Co., Ltd.
SKU: DL-37.9/185
Price: 5,000.00 USD
Availability: InStock

Marchio:	Ruifujie
Numero di modello:	DL-37.9/185
Moq:	1
prezzo:	Discussed
Tempo di consegna:	1 mese
Condizioni di pagamento:	T/T, Unione Occidentale

Informazioni dettagliate

Descrizione del prodotto

Informazioni dettagliate

Luogo di origine:

Cina

Modello:

DL-37.9/185

Capacità di refrigerazione nominale:

37,9 kW (37900 W)

Area abbinata:

185㎡

Tensione nominale:

380 V

Applicazione:

Cella frigorifera, congelatore

MOQ:

1 set

Garanzia:

1 anno

Imballaggio:

Imballaggio in legno

Imballaggi particolari:

cassa di legno

Capacità di alimentazione:

100 pz

Descrizione del prodotto

Industrial-grade DL185 Evaporator for Large Commercial Cold Storage

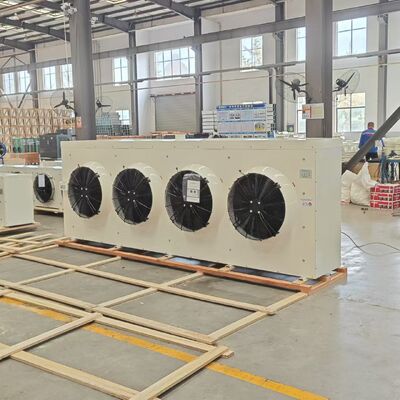

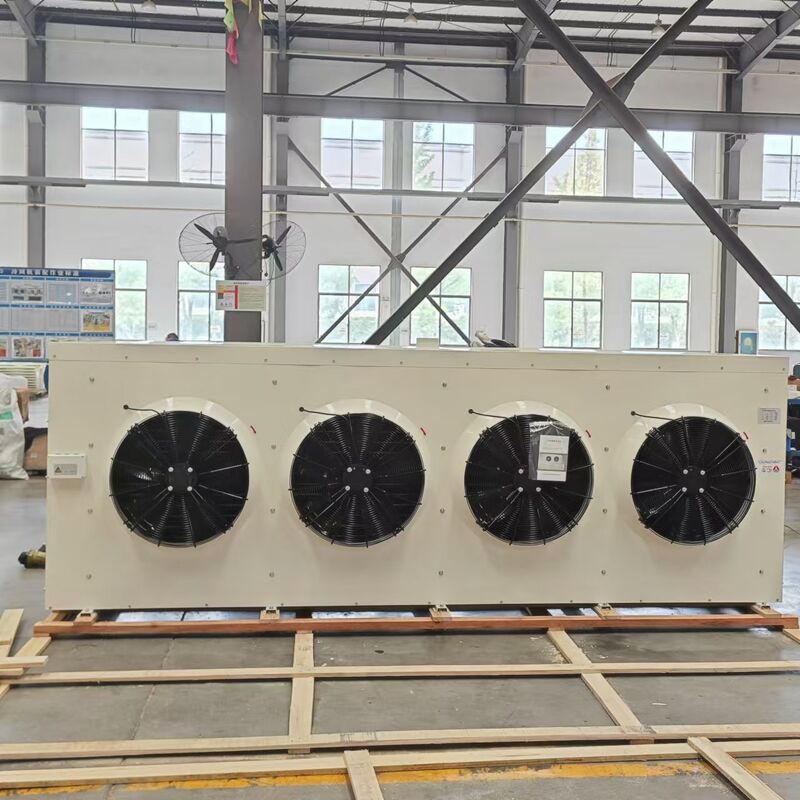

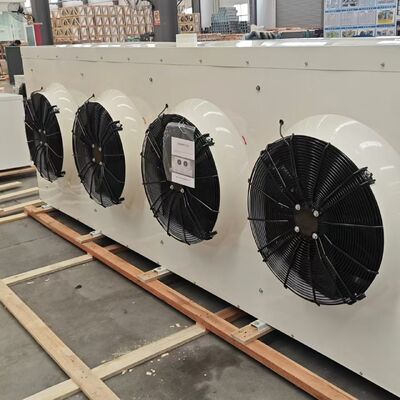

Product Images

Product Advantages

Heavy-Duty Cooling Power: 37.9kW nominal cooling capacity, perfectly matched for 185㎡ large cold rooms, maintaining ultra-stable low temperature under heavy commercial loads.
Full-Coverage Air Distribution: 24000 m³/H massive airflow with 15m throw range, eliminating temperature stratification and cooling dead zones in spacious cold storage.
Quadruple Fan Reliability: 4×414W 380V fans with 500mm diameter, engineered for 24/7 continuous industrial operation with consistent performance.
High-Efficiency Defrost System: 7200W fin defrost + 2400W drain pan defrost, efficiently clears heavy frost buildup in high-humidity cold environments.
Optimized Refrigerant Circuit: 22.7L tube volume with φ25/φ48mm inlet/outlet tubes, enhancing heat exchange efficiency for demanding low-temperature applications.

Technical Specifications

Parameter	Specification
Model	DL-37.9/185 (DL185)
Nominal Refrigeration Capacity	37.9 kW (37,900 W)
Applicable Cold Room Area	185 ㎡
Tube Volume	22.7 L
Refrigerant Inlet/Outlet Diameter	φ25 / φ48 mm
Fan Configuration	4 units
Fan Diameter	500 mm
Fan Voltage	380 V
Total Fan Power	1,656 W (4 × 414 W)
Air Volume	24,000 m³/H
Air Throw Range	15 m
Fin Defrost Power	7,200 W
Drain Pan Defrost Power	2,400 W

Company Profile

With more than 20 years of experience, Shenzhen Ruifujie is a large modern refrigeration enterprise specializing in refrigeration compressors. We produce scroll, piston, rotor, semi-hermetic and screw compressors, exported to countries like Pakistan, Turkey, Canada and Russia. We provide professional OEM/ODM services, have strong technical strength in refrigeration, and win global customers' praise for high-quality compressors and good services.

Packaging and Shipping

Supply Ability	1000000 pieces/year, MOQ is usually one piece
Shipping Time	Sample order in stock within 3 days, Bulk order generally 10-15 working days after receiving deposit
Shipping Method	Support by sea, by air, by express (DHL, FedEx, UPS...)
Payment Terms	TT/Western Union 30% Advance Payment, 70% Final Payment
Shipping Port	Ningbo Port, Shanghai Port, Shenzhen Port

Frequently Asked Questions

Q: What is your MOQ?

A: If we have the products in stock, it will be no MOQ. If we need to produce, we can discuss the MOQ according to customer's exact situation.

Q: What are the main products?

A: Semi-hermetic compressor, Hermetic Compressor, Condenser Unit, Air Cooler, Spare Parts, Chillers and Evaporators.

Q: What is your delivery time?

A: The time of delivery is 3-10 working days after payment.

Q: What about the services and aftersale?

A: Guarantee quality, the warranty period is 1 Year.

Q: What are your price terms?

A: We offer EXW or FOB Shenzhen pricing.
