Dettagli:
Termini di pagamento e spedizione:
|
| Colore: | Il nero | Apllication: | Refrigerazione |
|---|---|---|---|
| Tipo: | compressore di refrigerazione | Nome di prodotto: | ZB66KQE-TFD-558 |
| Garanzia: | 1 anno | Potere di cavallo: | 9HP |
| Fase: | 3 | Gas: | R404a |
| Tipo di modello: | TFD | Tensione: | 380V/50HZ |
| Collegamento: | Rotolock | ||
| Evidenziare: | Compressore di refrigerazione di 9HP R404A,ZB66KQE-TFD-558 |
||

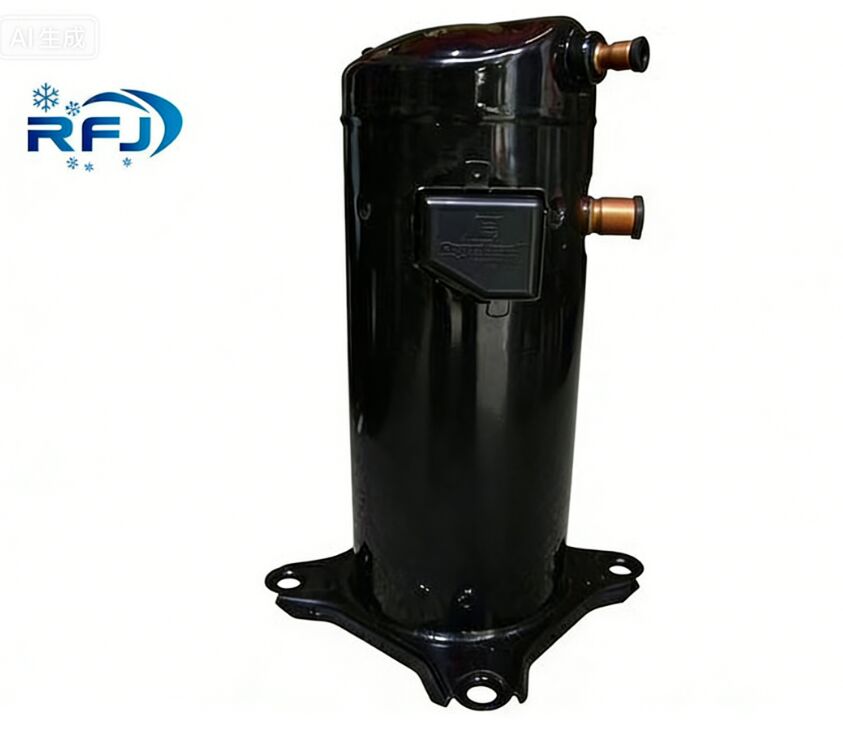

New R404A 9HP ZB66KQE-TFD-558 Copeland Scroll Compressors
1.Product Introduction:
1)Working R404 refrigerant.
2)Widely used in middle temperature refrigeration field.
3)380v/3ph/50hz
4)Horse power:9HP
5)Screw connection,with charging valve.
More detail:
Displacement (50/60Hz):25.7/31.0 m3/hr
Voltage:380-420/460V-3-50/60Hz
Connection Size:7/8" x 1-3/8"
Connection Code:550 524 Brazing / 551 523 Rotalock
Dimensions:264x284x546mm
Weight (NW):59KG
Copeland Scroll Compressor (ZB Series)
Refrigerant Freq (Hz) Phase Voltage Application
R-404A HFC 60 3 460 Medium Temperature
R-507 HFC 60 3 460
R-507 HFC 50 3 380/420
Product specification:
| brand | copeland |
| model | ZB66KQE-TFD-558 |
| horse power | 9 |
| refrigerant | R410a |
| power source | 380v/420V |
| Phrase | 3 |
| Color | Black |
| Connection | Rotolock |
| TYPE | COPELAND SCROLL COMPRESSOR |
2.More detail information for ZB series:
| Model | Horse Power | Refrigerant | Voltage |
| ZB15KQ-PFJ-558 | 2 | R22 | 220v/50hz |
| ZB15KQE-PFJ-558 | 2 | R404a | 220v/50hz |
| ZB15KQ-TFD-558 | 2 | R22 | 380V/50HZ |
| ZB15KQE-TFD-558 | 2 | R404a | 380V/50HZ |
| ZB19KQ-PFJ-558 | 3 | R22 | 220v/50hz |
| ZB19KQE-PFJ-558 | 3 | R404a | 220v/50hz |
| ZB19KQ-TFD-558 | 3 | R22 | 380V/50HZ |
| ZB19KQE-TFD-558 | 3 | R404a | 380V/50HZ |
| ZB21KQ-TFD-558 | 3 | R22 | 380V/50HZ |
| ZB21KQE-TFD-558 | 3 | R404a | 380V/50HZ |
| ZB21KQ-PFJ-558 | 3 | R22 | 220v/50hz |
| ZB21KQE-PFJ-558 | 3 | R404a | 220v/50hz |
| ZB26KQ-PFJ-558 | 4 | R22 | 220v/50hz |
| ZB26KQE-PFJ-558 | 4 | R404a | 220v/50hz |
| ZB26KQ-TFD-558 | 4 | R22 | 380V/50HZ |
| ZB26KQE-TFD-558 | 4 | R404a | 380V/50HZ |
| ZB29KQ-TFD-558 | 4 | R22 | 380V/50HZ |
| ZB29KQE-TFD-558 | 4 | R404a | 380V/50HZ |
| ZB38KQ-TFD-558 | 5 | R22 | 380V/50HZ |
| ZB38KQE-TFD-558 | 5 | R404a | 380V/50HZ |
| ZB45KQ-TFD-558 | 6 | R22 | 380V/50HZ |
| ZB45KQE-TFD-558 | 6 | R404a | 380V/50HZ |
| ZB48KQ-TFD-558 | 7 | R22 | 380V/50HZ |
| ZB48KQE-TFD-558 | 7 | R404a | 380V/50HZ |
| ZB58KQ-TFD-551 | 8 | R22 | 380V/50HZ |
| ZB58KQE-TFD-551 | 8 | R404a | 380V/50HZ |
| ZB66KQ-TFD-551 | 9 | R22 | 380V/50HZ |
| ZB66KQE-TFD-551 | 9 | R404a | 380V/50HZ |
| ZB76KQ-TFD-551 | 10 | R22 | 380V/50HZ |
| ZB76KQE-TFD-551 | 10 | R404a | 380V/50HZ |
| ZB88KQ-TFD-551 | 12 | R22 | 380V/50HZ |
| ZB95KQ-TFD-551 | 13 | R22 | 380V/50HZ |
| ZB95KQE-TFD-551 | 13 | R404a | 380V/50HZ |
| ZB114KQ-TFD-551 | 15 | R22 | 380V/50HZ |
| ZB114KQE-TFD-551 | 15 | R404a | 380V/50HZ |
3.Shipping&Payment:
1.Shipping:
1). For Sample order in stock, we aim to ship the compressor within 3 days.
2). For any Bulk order, generally we ship compressor in 10-15 working days after receiving deposit.
2.Payment:
1). T/T
2). Western Union
3.Delivery:
Here we guarantee on time delivery and if necessary, we will provide you the best logistics solution for the goods to reach at your location on time.
